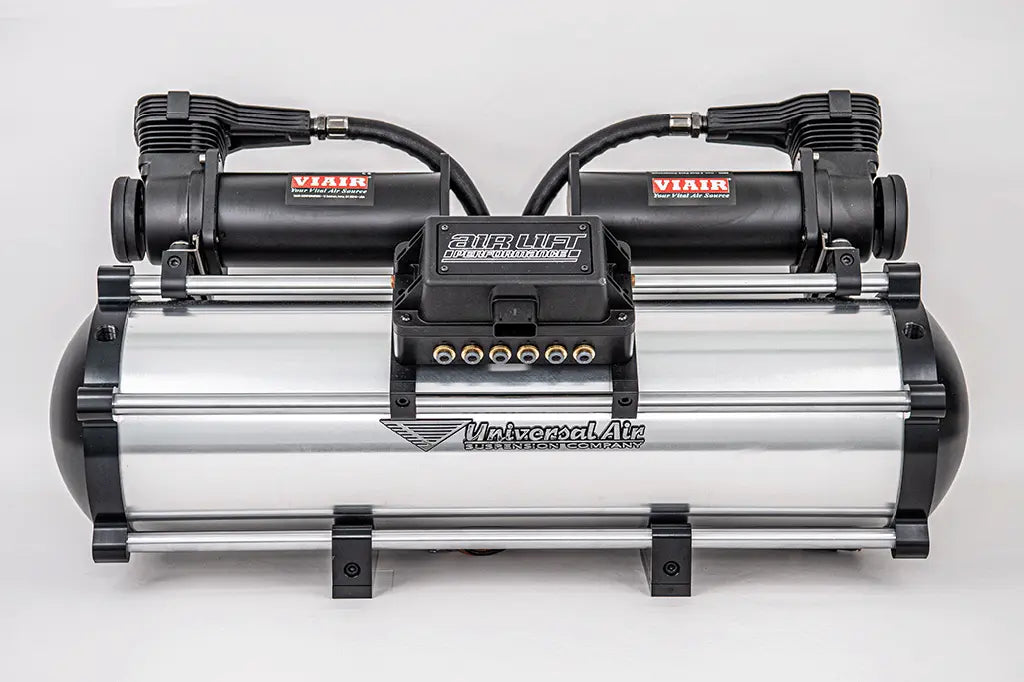

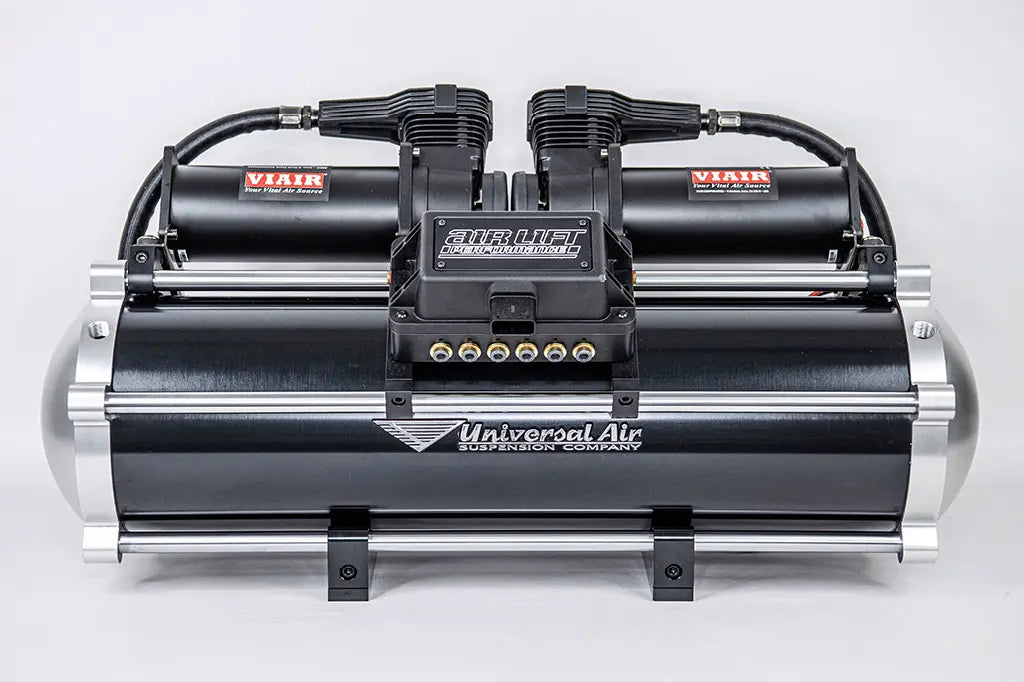

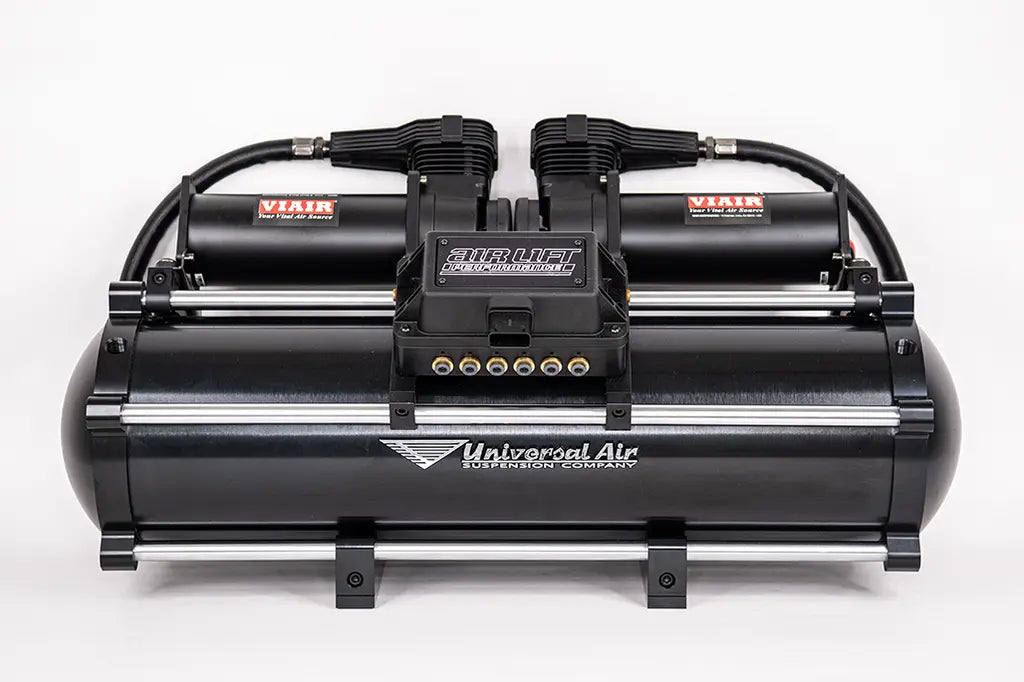

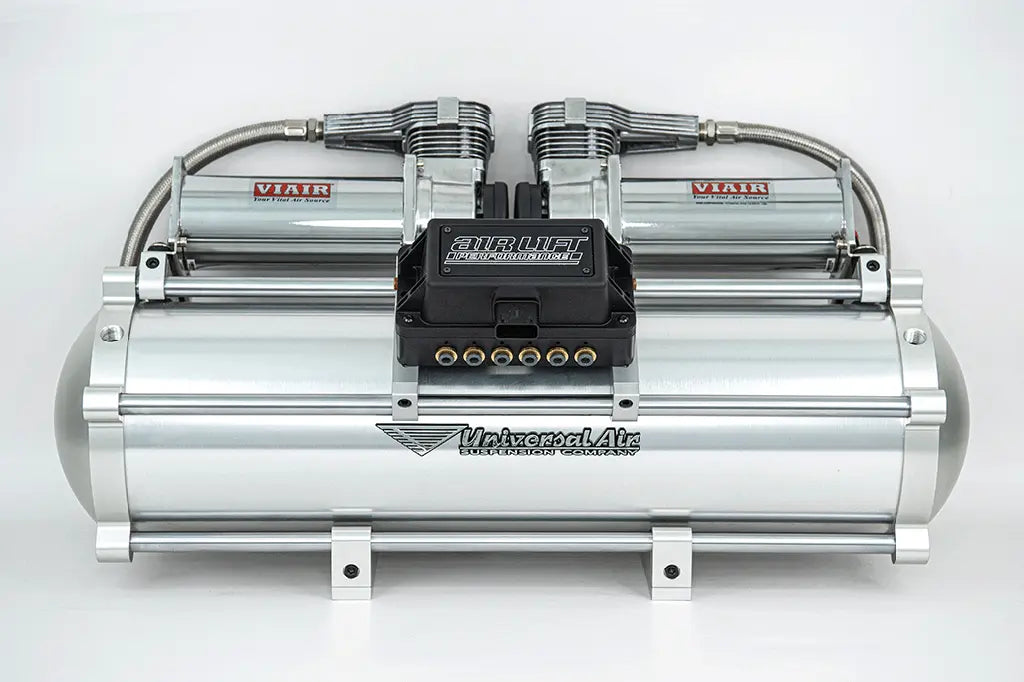

Modular Billet Air Tank
Universal Air Billet Air Tank 9" Deep x 9 5/8" Tall with leg facing downwards
Take your build to the Next Level
Who wants a Plain Jane Air Tank? Time to take your Custom Air Suspension System to the next level with our patent pending modular billet tank system. 5 Integrated support/mounting rods are the platforms to build your dream. Mount all the components onto the tank, or separate, let the creativity flow!
The Tank will arrive with the bottom clamp-on mounting feet. Optional bolt-on brackets give you the flexibility to add accessories onto your tank. Mounting to any of the 5 sides. The brackets have provision for the standard Viair bolt-on pattern to mount the compressor directly to the bracket along with a 5/16 counter bored thru hole from the bottom for your standard Airlift 3P/3H Manifold.
The tank comes in 12 different options. Black and silver are selectable colors for the cap and tube separately. 24", 28" and 32" in overall length. With the bolt-together design, many customers have disassembled the tanks to customize. Polished, carbon fiber wrapped, plated, powder coated and painted to match their build!
Adapter brackets are available for the Accuair VU4, Accuair ECU and Slam Manifold. Make air suspension super compact, clean, and easy to service. No matter if you want to show everything off or make it clean and simple. The Modular Billet Tank will fit your needs!
Specifications
9 5/8" Tall with Leg
9" Deep
Machined Aluminum End Caps
Thick Aluminum Extrusion Center
5 Cross Shafts/Mounting Rails
Clamp on Brackets Available
Over 1000 PSI Burst Pressure
24" = 3.38 Gallons
Bolt Together Design
Customizable
28" = 4.02 Gallons
32" = 4.67 Gallons
Silver and Black Cap Available
Silver and Black Tube Available
2 3/8" NPT on Each Cap
1 1/4" NPT on Each Cap
Specifications
| Choose Length | 24" - 3.38 Gallons or 28" - 4.02 Gallons or 32" - 4.67 Gallons |
| Color | Black Cap, Silver Tube or Silver Cap, Black Tube or Black Cap, Black Tube or Silver Cap, Silver Tub |
