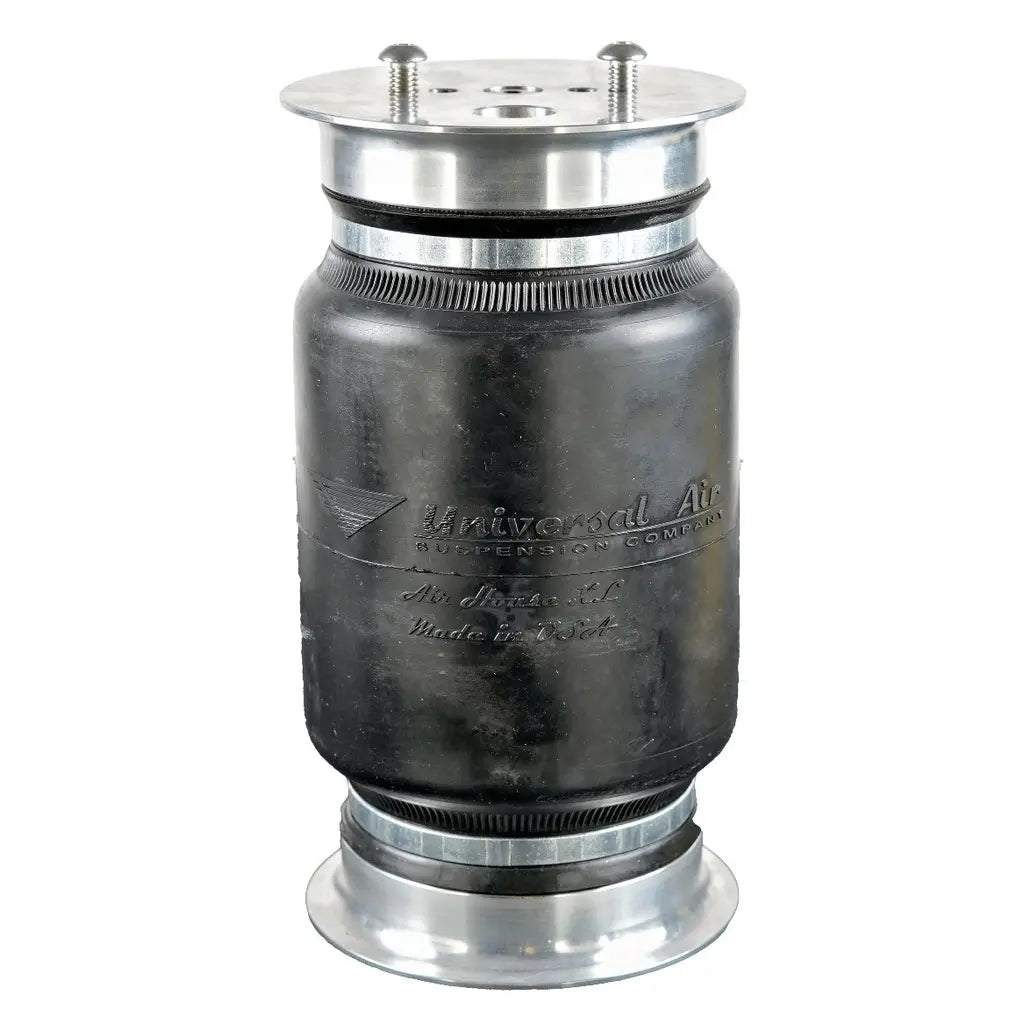

Air House 6 XL
By Universal Air
Maximize your Travel with the new Air House 6 XL
The Air House 6XL was designed to Push your Travel to the EXTREME! Originally designed for our Can Am x3 Kit.
By popular demand, we created a regular bag version.
With a 4.25" Collapsed, and massive 15.25" extended height, resulting in 11" of available bag travel and even more at the Wheels with leveraged suspension!
More travel then most bags in the same diameter class.
No Center Ring
Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.
Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated. Minimizing frame cutting in most applications.
With the added stability there is a very noticeable reduction in vehicle "sway" compared to a typical double convoluted.
Specifications
4.25" Collapsed Height
15.25" Extended Height
5.875" Max Diameter
Available in 1/4", 3/8" and 1/2" NPT
5.5" - 9.25" Optimum Ride Height
Up to 2600 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
615 PSI Tested Burst Pressure
Front or Rear Installation
Straight or Angled Installation

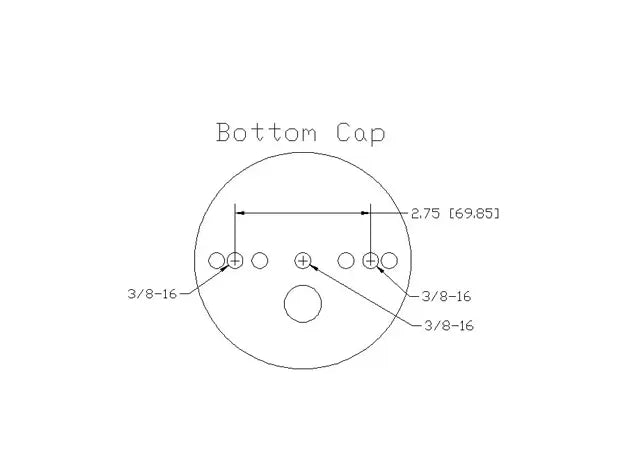

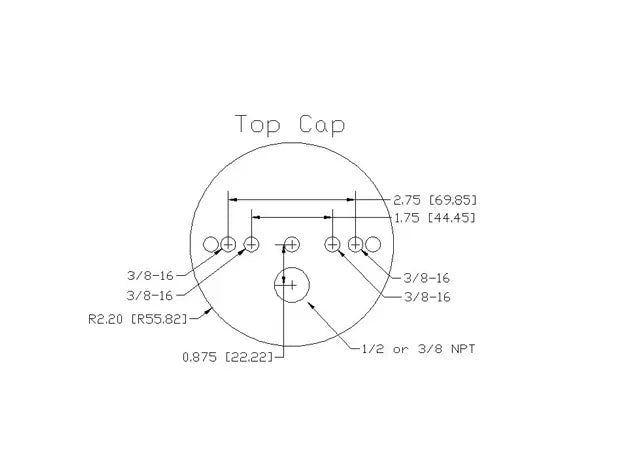

Industry Standard Bolt Pattern

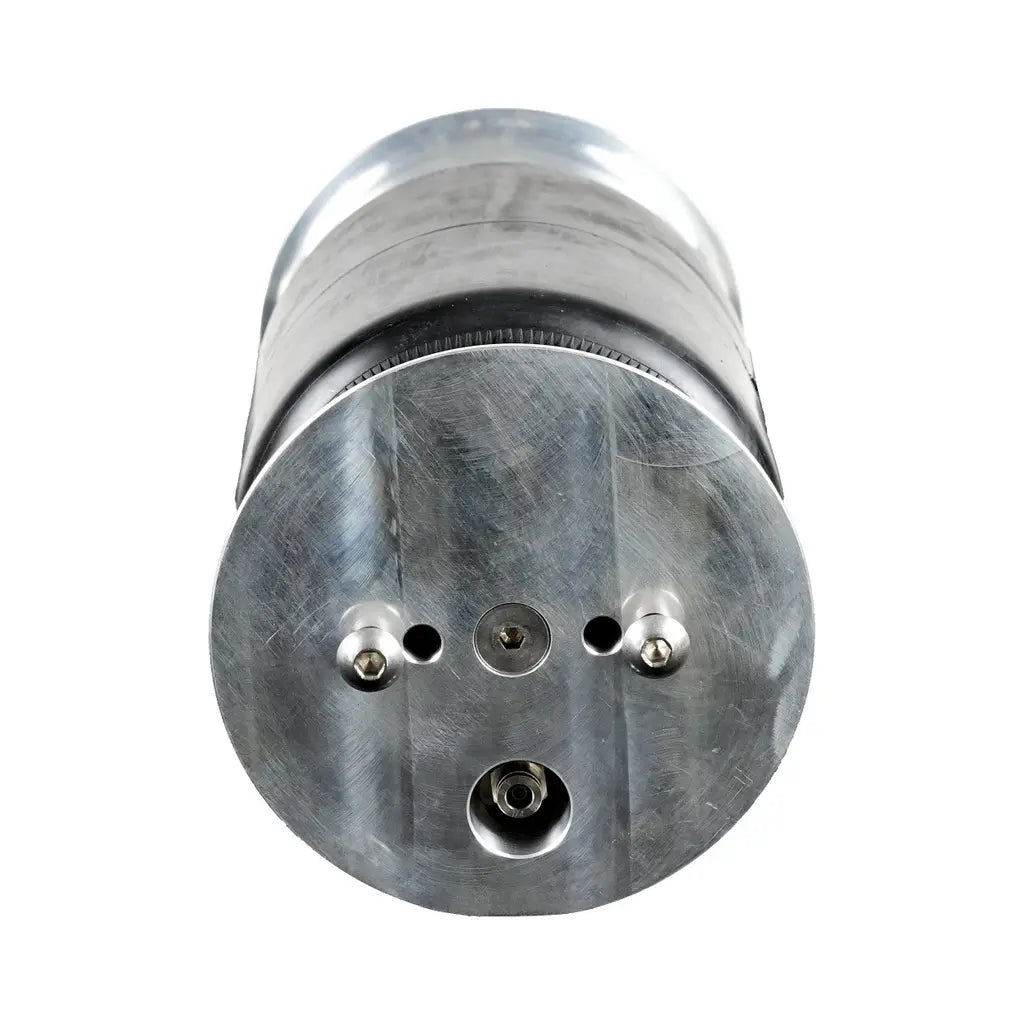

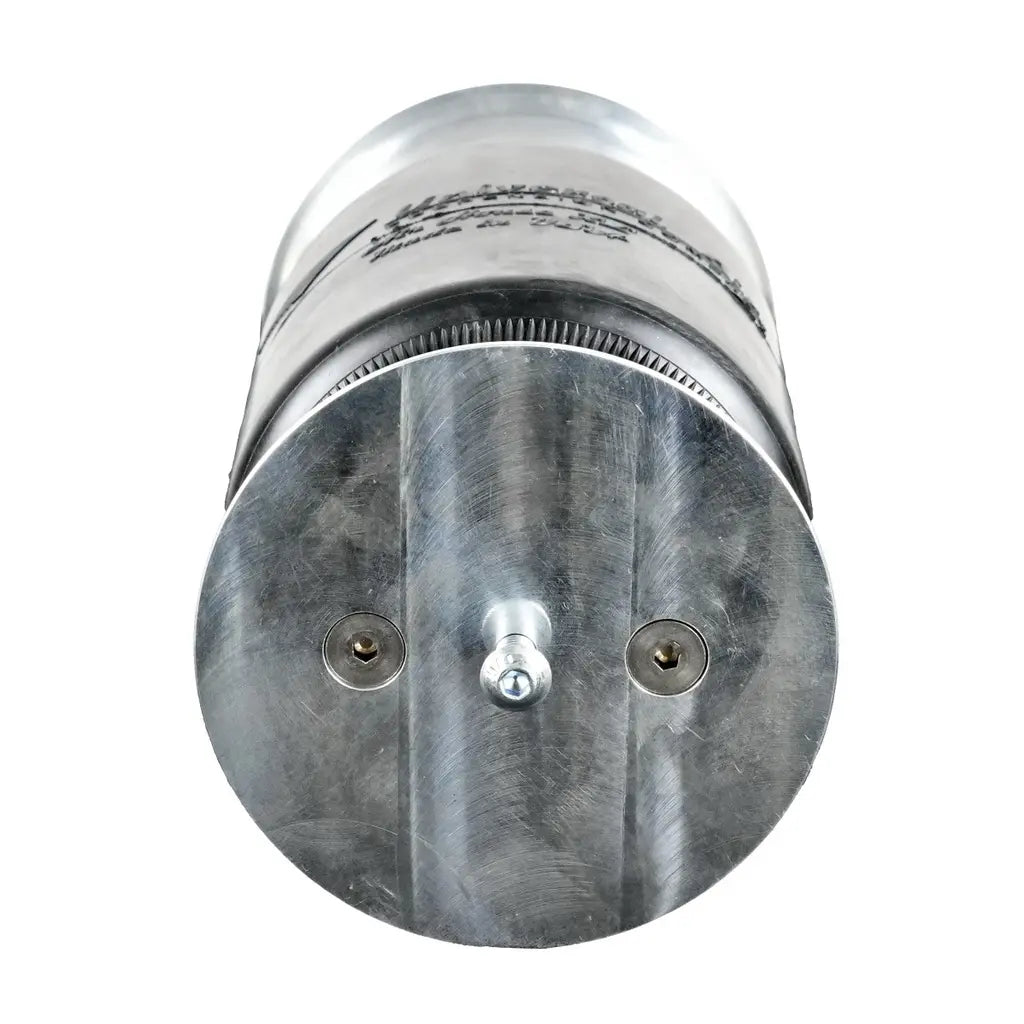

Machined 6061 Aluminum Caps
Seeing is Believing!
