Currently Available in 3/8" NPT

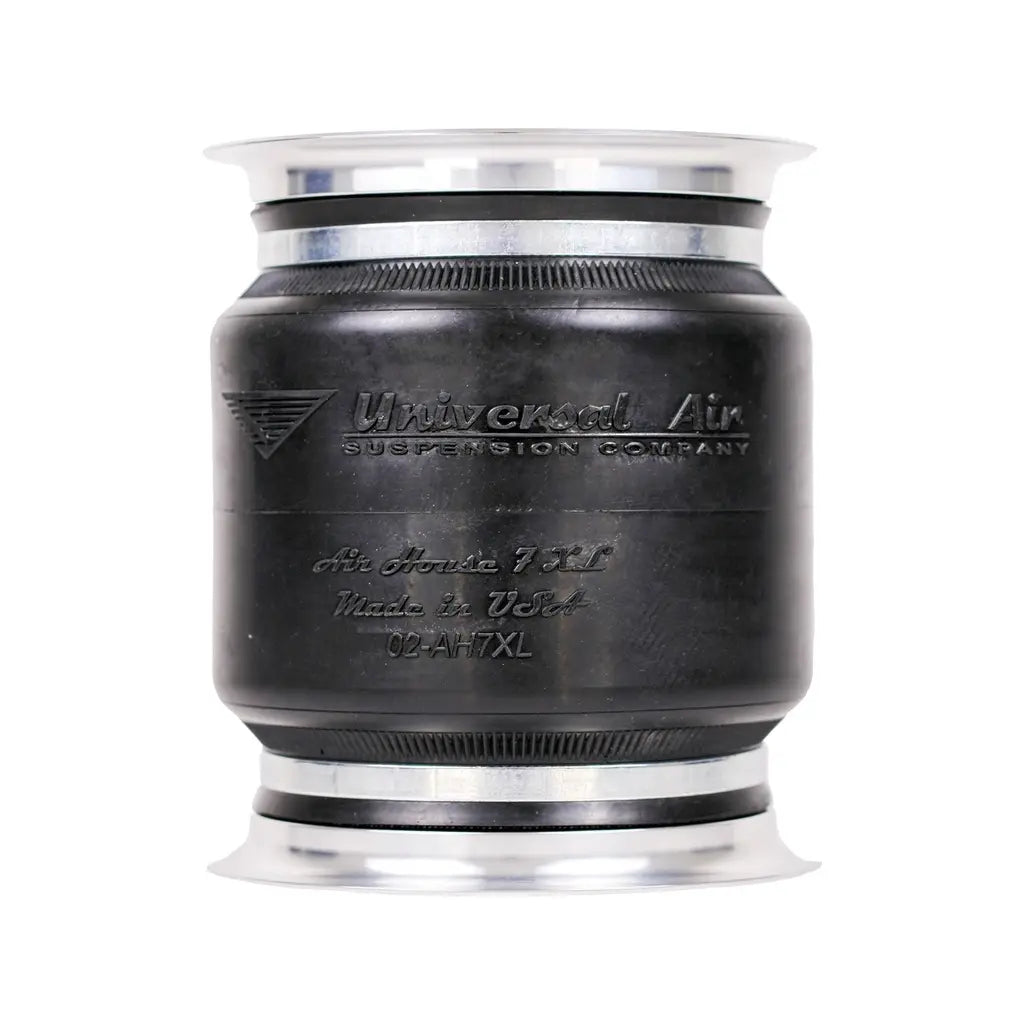

Air House 7 XL
By Universal Air
Designed to be a Direct Replacement for your standard 7" Bags
The Air House 7 XL was design to perform similar to our Air House 7, just Extra Long. The bag features a compressed height of 3" similar to most standard double convoluted bags do without the center kick-out problem. Re-use your existing brackets and unleash the smoother ride.
By extending the bellow, we unlocked more travel and a larger "Sweet Spot" available for your driving heights. Downside is by extending the bellow, we have to add support "Bead Plates" to support the bellow as its compressed.
Best suited for your Control Arm Front suspension, or Link rear system where the bags are mounted on the bar to take advantage of leverage.
No Center Ring
Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.

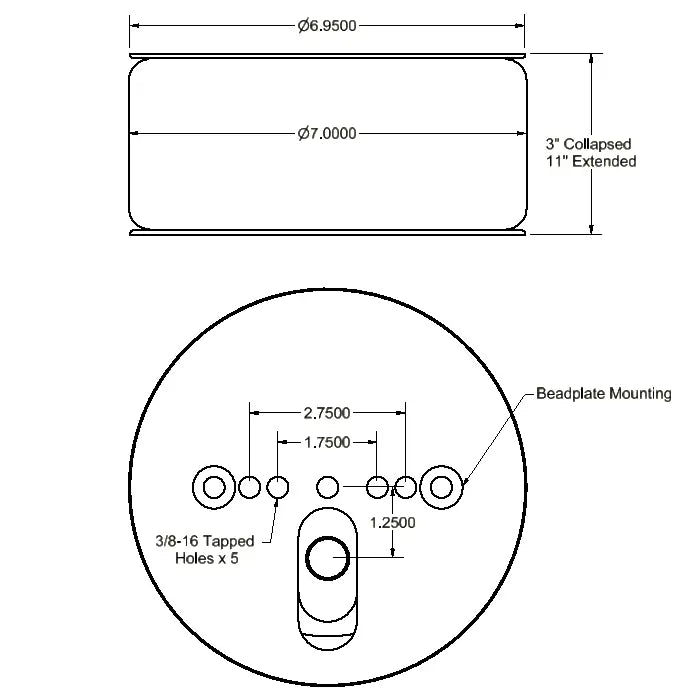

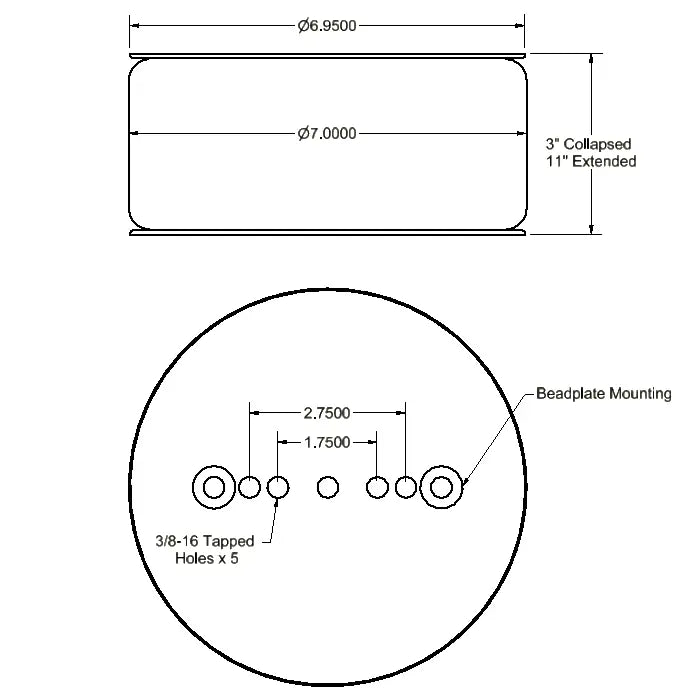

Maximum Outside Diameter when compressed is 7" and will shrink down to about 6 5/8" when inflated. Minimizing frame cutting in most applications.
With the added stability there is a very noticeable reduction in vehicle "sway" compared to a typical double convoluted.
