Mini Conversion for QA1 Shocks
By Universal Air
We Designed a Bag to adapt your QA1 Shocks

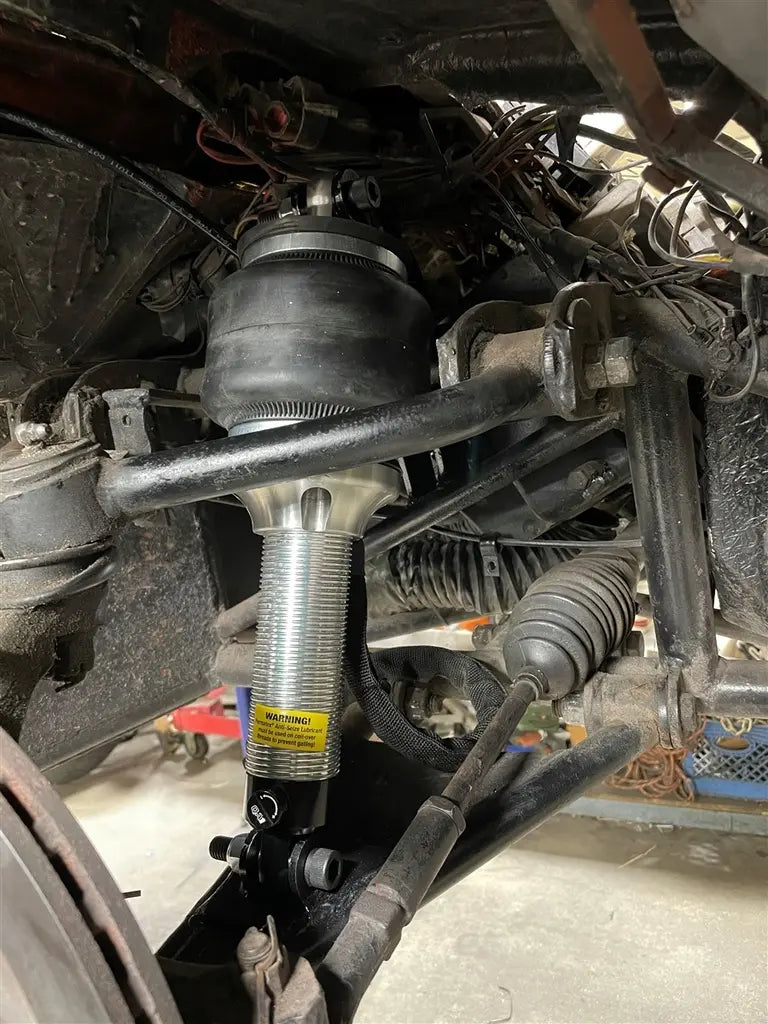

Finally got that restoration completed and REALLY wish you had adjustable suspension? Our Mini for QA1 is your answer! We have made our slim Air House Mini adapt onto your existing QA1 DS or DD shocks.
Have a custom application that needs the best collapsed height to travel ratio's these shocks deliver. With only sacrificing 5/8" of travel, this kit will convert your standard Coil shocks to an air shock.
Maximize all of the available options available from QA1 for ends, lengths, adjustability and travel!
Specifications
2" Collapsed
7.5" Up to Extended
5.25" Diameter
16 LBS Per PSI @ 2" Ride Height
Kit Contains
Air Spring for QA1 Shock
Leader Hose Assembly
Threaded Adapter for QA1
Hardware
QA1 Dimensions With Bag
|
QA1 Collapsed Length |
Collapsed with Bag |
Extended |
Travel |
|
8.75" |
9.375" |
11.125" |
1.75" * |
|
9.5" |
10.125" |
12.75" |
2.625" * |
|
10.125" |
10.75" |
14" |
3.25" |
|
11.125" |
11.75" |
15" |
3.25" |
|
11.625" |
12.25" |
16.875" |
4.625" |
|
12.625" |
13.25" |
18.75" |
5.5" |
|
13" |
13.625" |
19.125" |
5.5" ** |
|
15" |
15.625" |
21.125" |
5.5" ** |
QA1 Standard Mounting
Bushing: 1.25" Wide includes 1/2" and 5/8" ID Sleeves
Bearing: 1/2" Hole x 1" Long
QA1 Has optional extended eye for +1" and +2" For collapsed and extended lengths.
*Not Recommended with Such Short Travel
** Bag has 5.5" of Travel, Shock Travel will be limited
