Double Play
By Universal Air

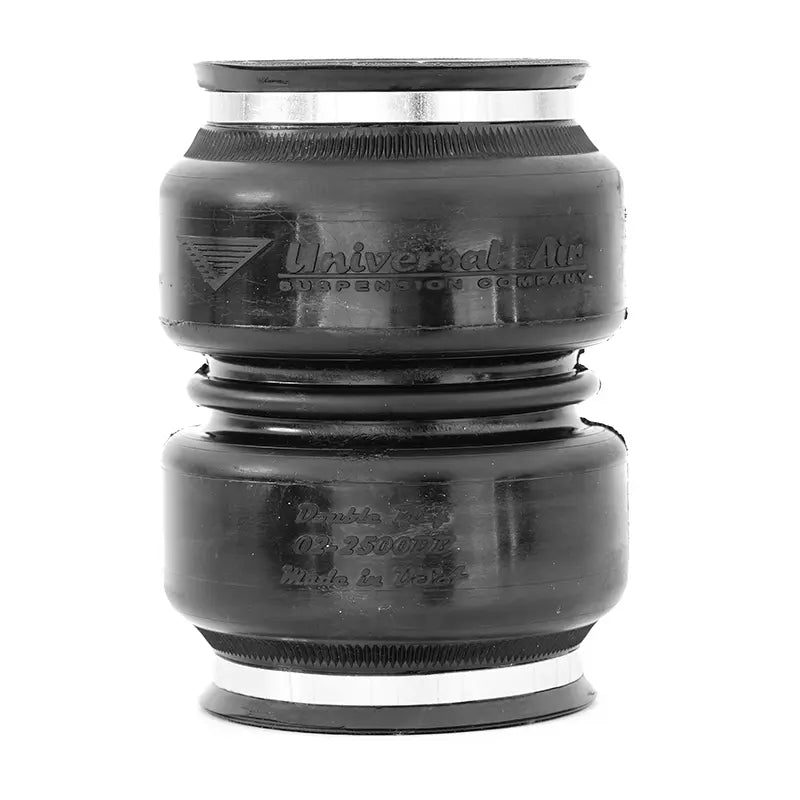

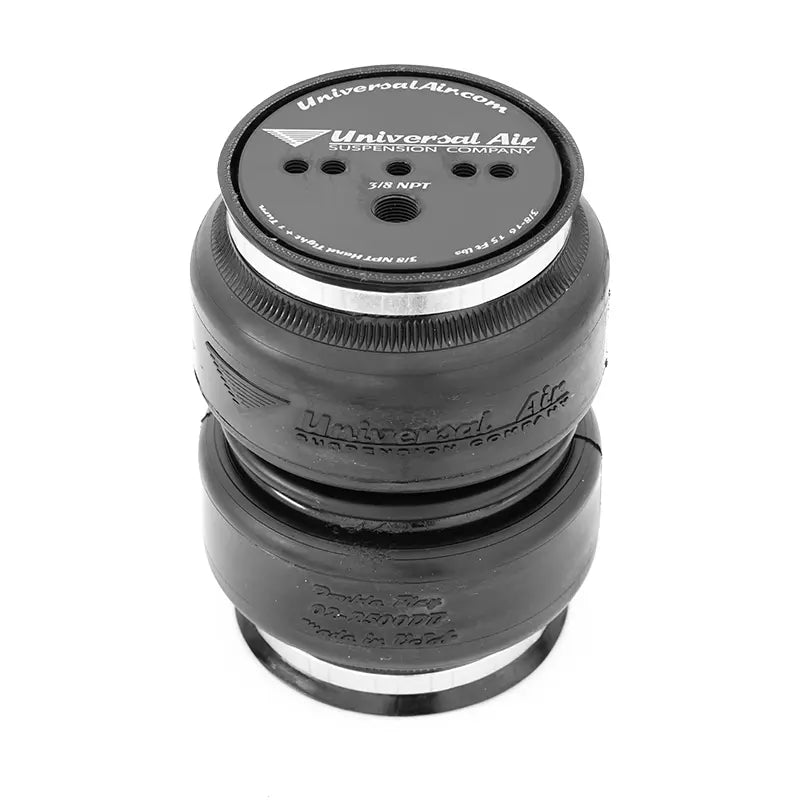

Double Convoluted for Rear Suspension.
The Double Play is the perfect choice for your rear suspension that doesn't angle too much. Engineered for an excellent ride quality and higher travel in the same diameter size.
Recommended Mounting is directly to the axel in a rear suspension application, or just Infront of the axel on a rear trailing arm setup. Like in a C-10 or Impala.
The bag IS NOT designed for a front control arm suspension. The Air House 2 is the recommended bag for front suspension.
Higher Travel
Double bellow construction greatly increases the travel of the air spring but at the cost for angle capacity and Hi Load applications.
Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated.
