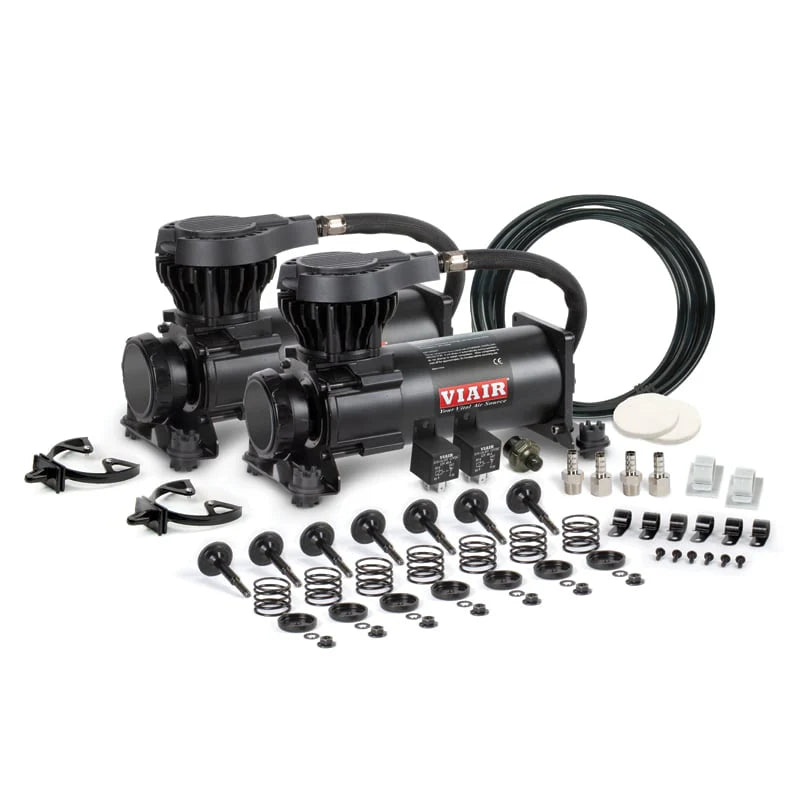

310 SS Dual Stealth Black Performance Value Pack

Vendor: VIAIR
Regular price: $574.95
Sale price: $574.95
Regular price
Unit price: per

Tax included.

Quantity

Quantity must be 1 or more

The 310 Stealth-Series dual pack compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50%. Equipped with spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves. RoHs/REACH certified.

SPECS:

CFM: 2.05 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Duty Cycle: 50% @ 200 PSI
Max. Working Pressure: 200 PSI
Max. Air Tank Size: 10.0 Gallon
Max. 12V Amp Draw: 46-Amps
Ingress Protection Rating: IP67
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions: 10.7″L x 4.4″W x 7.3″H
Net Weight: 19.5lbs.

FEATURES:

Thermal Overload Protector
Heavy Duty Pressure Switch
(165 PSI on, 200 PSI off)
Black Sleeved
Stainless Steel Braided Leader Hoses
Inline Check Valve
40-Amp 12v Relays
Spring Loaded Vibration Isolating Feet
Mounting Hardware
Air Line for Remote Mount Air Filter
Remote Mount 6-Stage
Air Filter/Muffler Assemblies
(2) Replacement Air Filter Elements
Installation Instructions

PLEASE NOTE:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs. * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary. ** Compared to VIAIR 350C/380C compressors noise levels.
